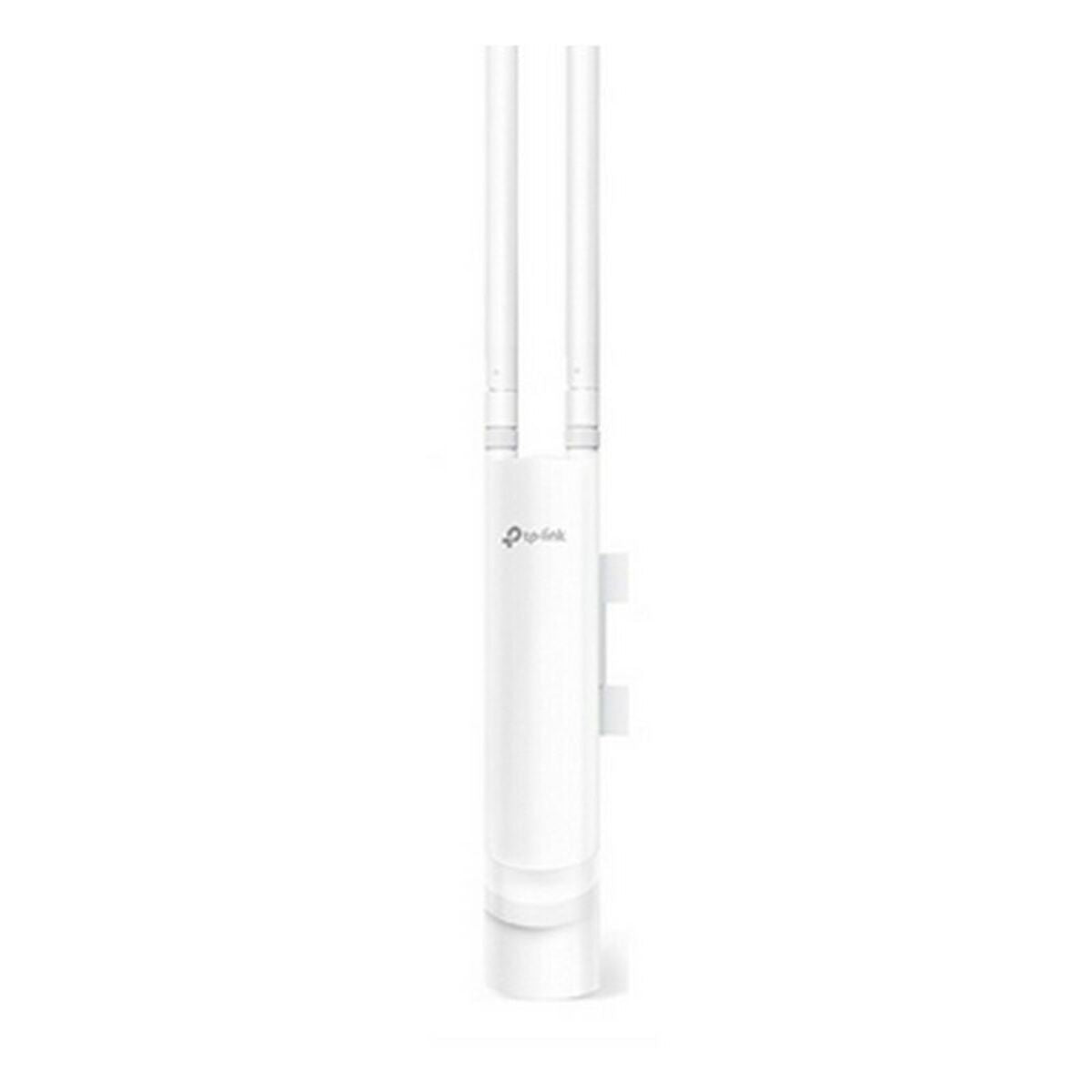

Access point TP-Link AC1200 White

The TP-Link EAP225-Outdoor is a professional access point designed to deliver high-performance outdoor Wi-Fi coverage, ideal for business environments, hotels, or any space requiring robust and stable outdoor connectivity. This device operates with Wi-Fi 802.11ac/n/b/g/a technology, reaching combined speeds of up to 1200 Mbps on dual 2.4 GHz and 5 GHz bands, enabling smooth browsing and simultaneous connections for multiple users. It features 4dBi antennas optimized to enhance signal range and stability in open areas. Connectivity is versatile thanks to its RJ45 Gigabit Ethernet LAN port and compatibility with PoE (Power over Ethernet), allowing both data and power transmission through a single cable for easy installation. Its white housing is designed to withstand outdoor conditions, and it comes with an installation guide to simplify setup. Compatible with 24 V and 110 V voltages, it adapts to various electrical requirements and includes multilingual support, including French. Overall, the TP-Link EAP225-Outdoor is an efficient and secure solution for those needing to extend wireless connectivity outdoors with ease and reliability.

• Ports: Gigabit Ethernet (RJ-45)
• Frequency:
  • 2,4 GHz
  • 5 GHz
  • 2.4 GHz-5 GHz
• Approx. dimensions: 21,5 X 4,6 X 2,7 cm
• Type: Access point
• Product with plug: Yes
• Connections:
  • Ethernet LAN
  • RJ45
  • PoE x 1
  • SATA
• Type of plug: Plug EU
• Power supply:
  • Electric Network
  • AC
• Colour: White
• Connectivity:
  • Wi-Fi
  • LAN 10/100/1000Mbps
• Speed: 867 Mbps
• Assembly: Wall mounting
• Characteristics: Installation guide included
• Language: French
• Voltage:
  • 24 V
  • 110 V
• IP rating: IP65
• Includes: Self-assembly Kit
• Certificate: CE, FCC, RoHS
• Not included: Adapter AC
• Weight: 620 g
• Working range for humidity: 10 % - 90 %
• Operating System: Windows
• Approx. temperature: -40º / 70º
• Nuclei: 1 core
• Width: 21,5 cm

11AC Wave 2 Makes Wi-Fi Go Further Omada EAP225-Outdoor Gigabit Wi-Fi Speeds with MU-MIMO Technology EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment. Excellent Hardware Designs With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors. Detachable Antennas EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. Delicate Appearance Even Better for Indoor Applications EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm) Multiple PoE Options for Easy Installation EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. Excellent Hardware Designs With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors. Flexible Deployment EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided. Wi-Fi That Goes the Distance With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings. Specially Designed Weatherproof Enclosure for Outdoor Environment Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition. Efficient Centralized Network Management With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

• 2.4 GHz: Y
• 5 GHz: Y
• Maximum data transfer rate: 1200 Mbit/s
• Maximum data transfer rate (2.4 GHz): 300 Mbit/s
• Maximum data transfer rate (5 GHz): 867 Mbit/s
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Frequency band: 2.4 - 5 GHz
• Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u
• MIMO: Y
• MIMO type: Multi User MIMO
• Rate limiting: Y
• Band steering: Y
• Airtime Fairness (ATF): Y
• Quality of Service (QoS) support: Y
• Security algorithms: 802.1x RADIUS
• Number of SSID supported: 16
• Web-based management: Y
• Syslog: Y
• Ethernet LAN (RJ-45) ports: 1
• Power over Ethernet (PoE): Y
• Output voltage: 24 V
• Power consumption (typical): 10.5 W
• Placement: Ceiling, Wall
• Product colour: White
• Reset button: Y
• Certification: CE、FCC、RoHS
• Antenna type: External
• Antenna direction type: Omni-directional
• Antenna features: Detachable antenna
• Antennas quantity: 2
• Antenna gain level (max): 4 dBi
• Operating relative humidity (H-H): 10 - 90%
• Operating temperature (T-T): -30 - 70 °C
• Storage temperature (T-T): -40 - 70 °C
• Storage relative humidity (H-H): 5 - 90%
• Width: 215.7 mm
• Depth: 90.7 mm
• Height: 52.2 mm
• Number of products included: 1 pc(s)
• AC adapter included: Y
• Mounting kit: Y
• Quick start guide: Y
• Package width: 270 mm
• Package depth: 140 mm
• Package height: 100 mm
• Package weight: 640 g
